• A 2.2 M long × 0.500M carbon Fibre Gangway with a construction and test rating of 5000nm. The total weight of the plank is 14kg. This plank was made to fit through a small opening side door.

  • A 3.5m × 0.90m Polyester GRP gangway with heavy duty non slip cork deck the Gang way is raised and lowered electrically by a built-in rechargeable power pack. The operational load to manoeuver this plank is less than 10kg. The load rating is 5000 NM

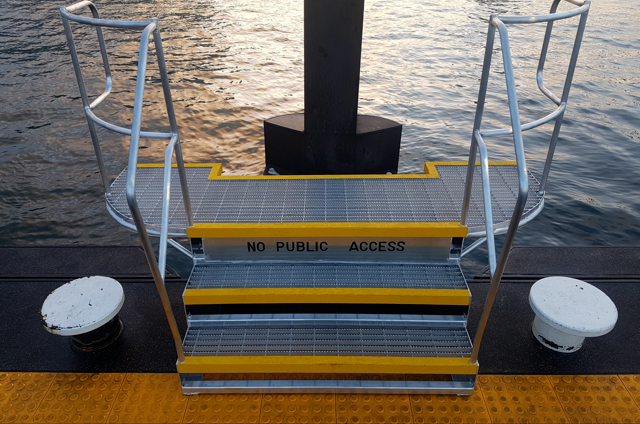

  • An aluminium Staircase leading to an aluminium Gang way is often a solution for low wharfs during high tides. This construction is in Marine Grade Aluminium.

  • An aluminium Staircase leading to an aluminium Gang way is often a solution for low wharfs during high tides. This construction is in Marine Grade Aluminium.

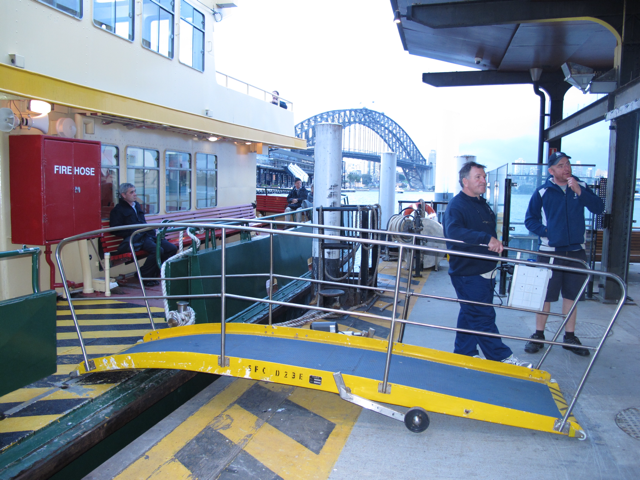

  • A 3.5m wharf brow in use by Sydney Ferry Corporation.

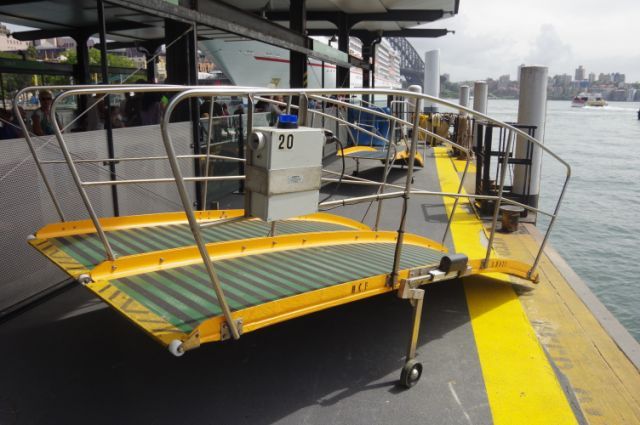

  • A Dual lane 3.5m gangway facilitates fast pedestrian traffic in large volume situations. This gangway has electronic positioning assist.

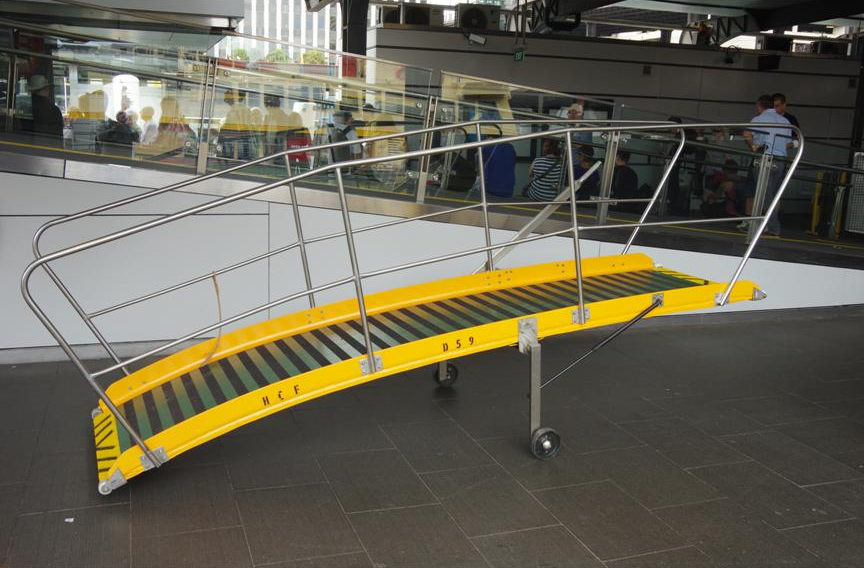

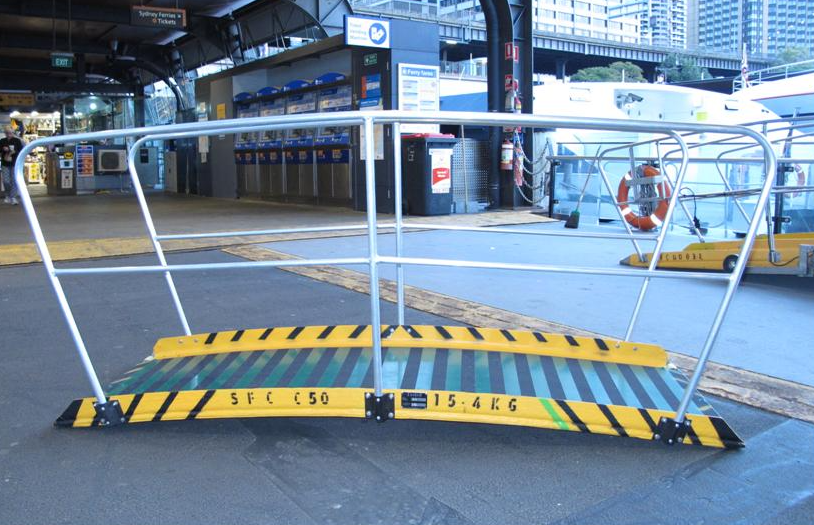

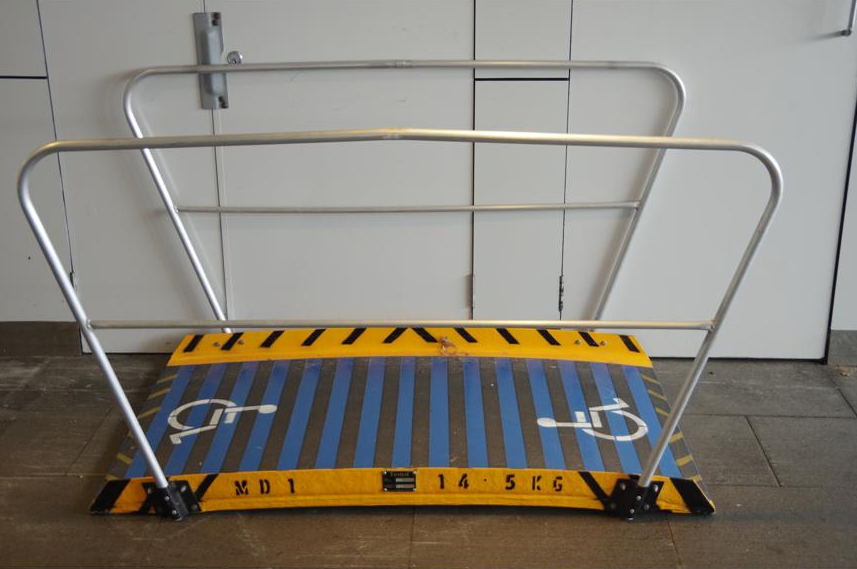

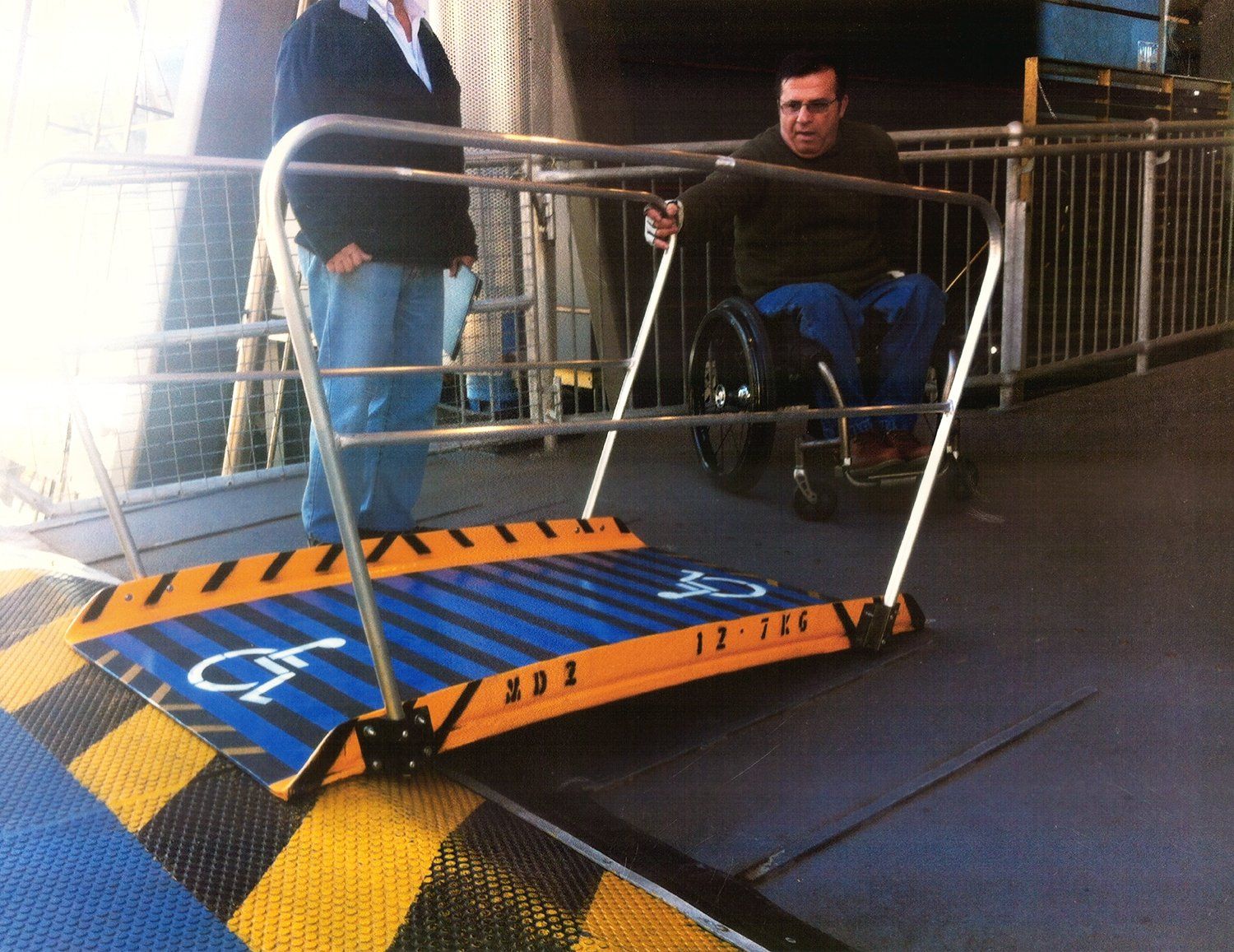

  • At 2.2 m length 750mm width, 1.7 tonne design, two rails and weighing less than 16kg this plank set a new standard in manual handling gangways.

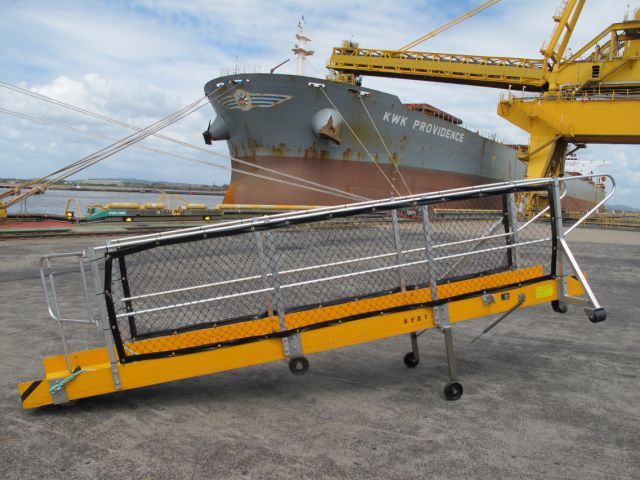

  • A 6m staff gangway that can be positioned by a small person unassisted. This wharf brow utilizes electronic assist positioning.

  • A 6m staff gang way that can be positioned by a small person unassisted. This wharf brow utilizes electronic assist positioning.

  • Carbon fiber composite materials and a vacuum infusion system is used in various situations through out the construction.

  • Some lateral thinking is often required when specialized design is required.

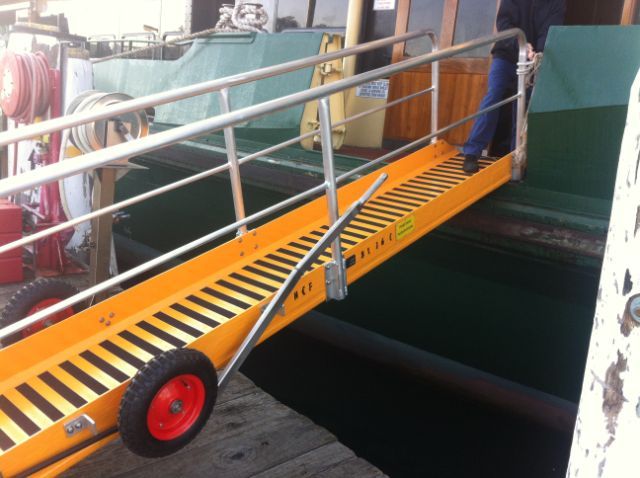

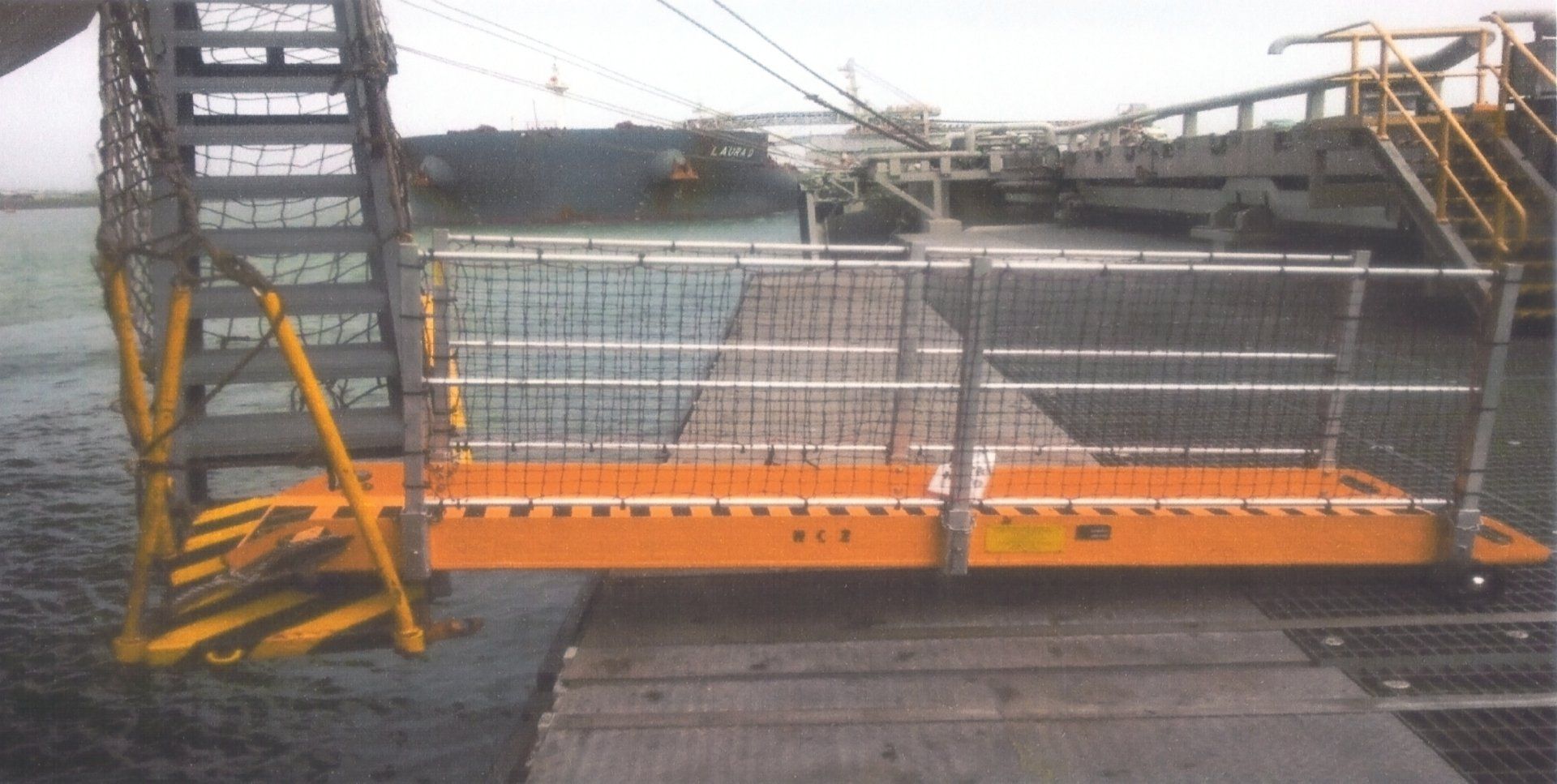

  • A fully compliant ISO 7062 Wharf Brow with a manual positioning system. This system allows the Brow to be positioned by one person. This gang way is also fitted with roll prohibitor and load distribution system. For applications where the attachment point is at a large angle.

Gangways, Gangplanks and Wharf Brow Manufacture & General Fiberglass, Sydney

Construction is to USL Code standards, National Standard for Commercial Vessels, ISO 7062 Standard, or other standard as requested.

Manufacturing in Carbon Fiber, E Glass, GRP, with Epoxy or Polyester Resins.

Construction can also be made in aluminium or Stainless steel.

Unless specified differently all gangways have design construction of 5000nm the actual load recommendation is sometimes lower than this in order to provide a SWL with ample reserve and restrict overcrowding on the structure.

2 hand rails are supplied on all planks unless specified different.

We are also proficient and accomodating with fibreglass repairs and fibreglass boat repairs in Sydney.
